SUCCESS

Monitoring
We use the ARMmite Pro (predecessor to the LPC2103) to control a high-speed frequency digitizer that we make for one of our products. It offers great "pin-level" sensing and control, and can do ‘smart’ things like send the data as serial, and it can be programmed quickly in a BASIC-type language.
        By orienting the design around the Pro, I can make changes in the device’s operation quickly in software rather than making hardware design changes, which is a much slower process.
—Ron R.,
Measuretech

APPLICATIONS

  • Sensors
  • Monitoring
  • Measurement
  • Logging
  • Simple controls

PERFORMANCE ADVANTAGE

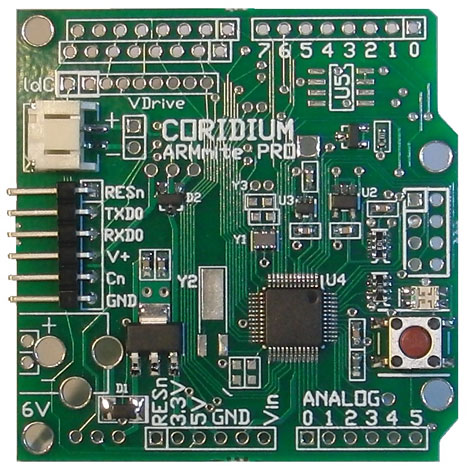

PRO Board 60 MHz
(LPC2103)
$29.95
  • This legacy design is still available to users from Coridium.

USEFUL LINKS

TECHNICAL SPECIFICATIONS

System

  • Board-mounted 60 MHz ARM7 CPU (LPC2103)
  • Programmable in a compiled BASIC or C
  • Operates faster than 10 million BASIC lines/second

Size

  • 2.1”x2.05”

Storage

  • 20k user code space (1600 Instructions)
  • 5k user data
  • 32k flash size
  • 8k RAM size

Power

  • 350 mW
  • 7V DC input
  • Provides 500 mA +5V

Connectors

  • Debug connector
  • Connections for 21 digital I/O
