SUCCESS

Education
I will use the ARM CPU in my instrumentation class (we also use Arduino), with senior theses in Physics and Atmospheric Sciences.
        I'm also testing them for use in my photo acoustic instrumentation and sun photometers where we need to have control, calculation and lock-in amplification.
—W. Patrick A.
University of Nevada-Reno

APPLICATIONS

  • Sensors
  • Monitoring
  • Measurement
  • Logging
  • Simple controls

USEFUL LINKS

PERFORMANCE ADVANTAGE

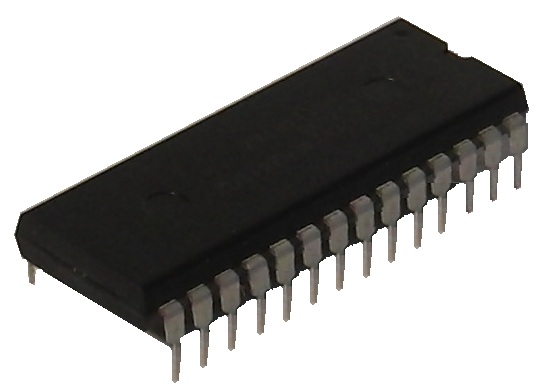

ARM BASIC Chip 50 MHz (LPC1114)
$10.00
  • Breakthrough price! Lowest cost 32-bit processor providing full floating point support
  • No other support chips or parts required
  • Connect GND and 3.3v supply and solve your application in system programmable with a minimum number of connections

TECHNICAL SPECIFICATIONS

System

  • 50 MHz ARM M0 32-bit CPU (LPC1114)
  • Programmable in a compiled BASIC
  • Operates faster than 6 million BASIC lines per second
  • IEEE 754 floating-point support
  • Internal 12 MHz 1% oscillator

Size

  • DIP28 - 1.4’ x 0.6”

Storage

  • 32K Flash memory
  • 4K RAM memory
  • 20K user Flash space
  • 2K user RAM

Power

  • Less than 50 mW
  • 3.3V DC input

Connectors

  • 22 TTL compatible, 2.4V threshold, 5V tolerant
  • 6 x 10 bit analog A/Ds
